Description
Article no.: T2106-00

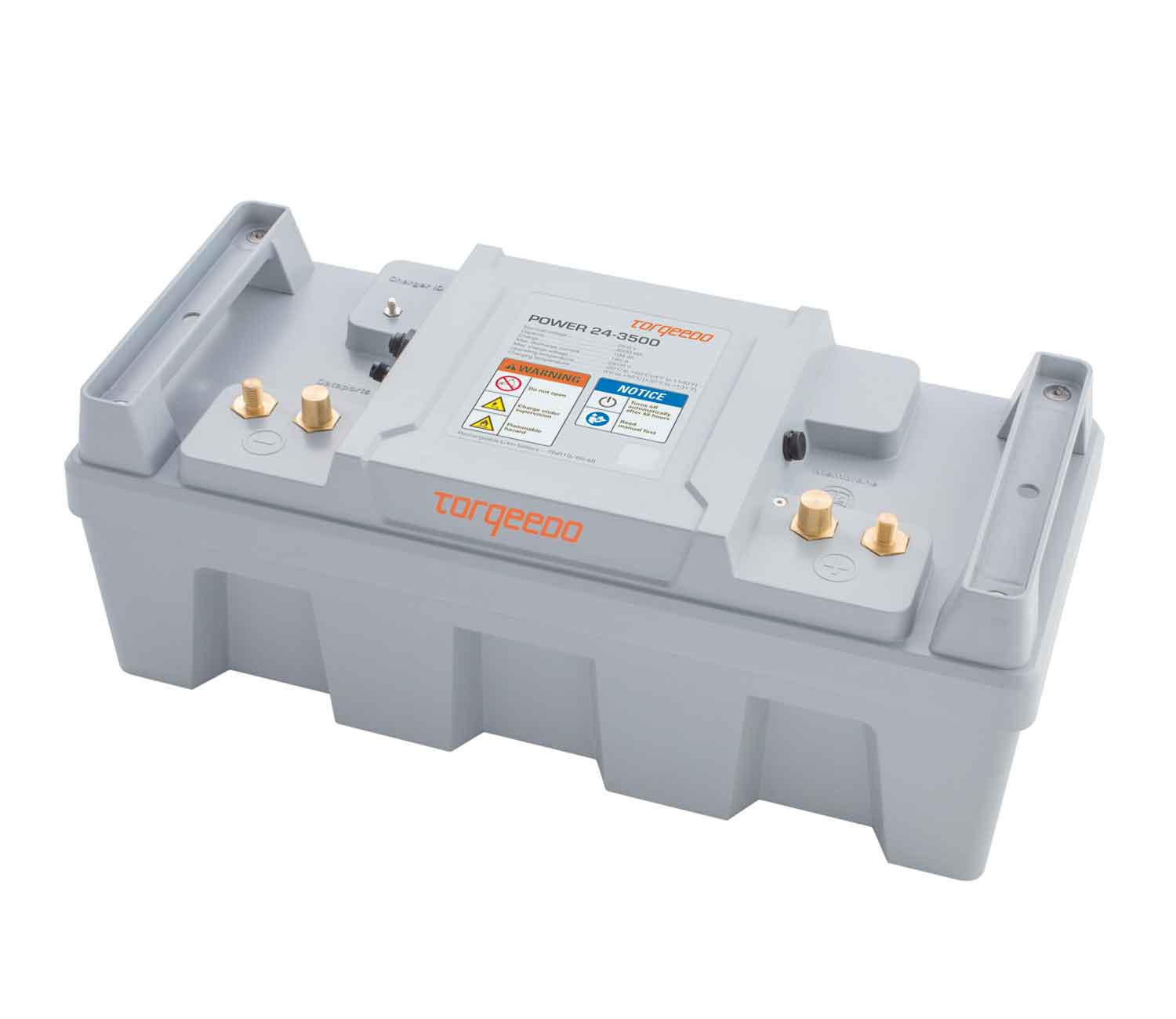

Battery for Torqeedo 24V.
- High efficiency lithium battery of 3 679 Wh.
- Energy density up to 145 Wh/kg.
- Weighs 25.4 kg.
- Fully charged in 12h with the standard charger (350 W)
- Fully charged in 2h with fast charger (1700 W)
- Waterproof according to IP67
- Built-in protection against overcharging, short circuit, deep discharge, pole reversal & overheating
| Characteristics & features | |
| Battery capacity | 3,679 Wh |
| Nominal voltage | 25.2 V |
| Final discharge voltage | 21.0 V |
| Nominal charge | 139,2 Ah |
| Maximum discharge current | 180 A |
| Maximum discharge current at nominal voltage | 4,660 W |
| Weight (kg) | 25.4 kg |
| Dimensions (L x H x W) | 577.5 mm x 218.5 mm x 253.5 mm |
| Volume | 32 l |
| Battery chemistry | Li-NCA |
| Benchmark information | |
| Energy density (weight) | 145 Wh/kg |
| Energy density (volume) | 115 Wh/l |
| Power density (weight) | 183 W/kg |
| Power density (volume) | 146 W/l |
| Lifetime data | |
| Cycle life | 800 cycles with 100% depth of discharge at 25°C results in capacity loss of about 25%. |
| Average annual capacity loss | Approx. 4% at 25°C ambient temperature |
| Usage information | |
| Cell operating temperature | -20°C to +55°C |
| Cell charging temperature | 0°C to +45°C |
| Temperature (storage) | -30°C to +50°C |
| Typical storage time at 50% SOC | 1 year |
| Max. connections | 2S8P or 1S16P |
| Max. fast charging | 50 A |
| Protection class | IP67 |
