Description
Article no.: T2104-00

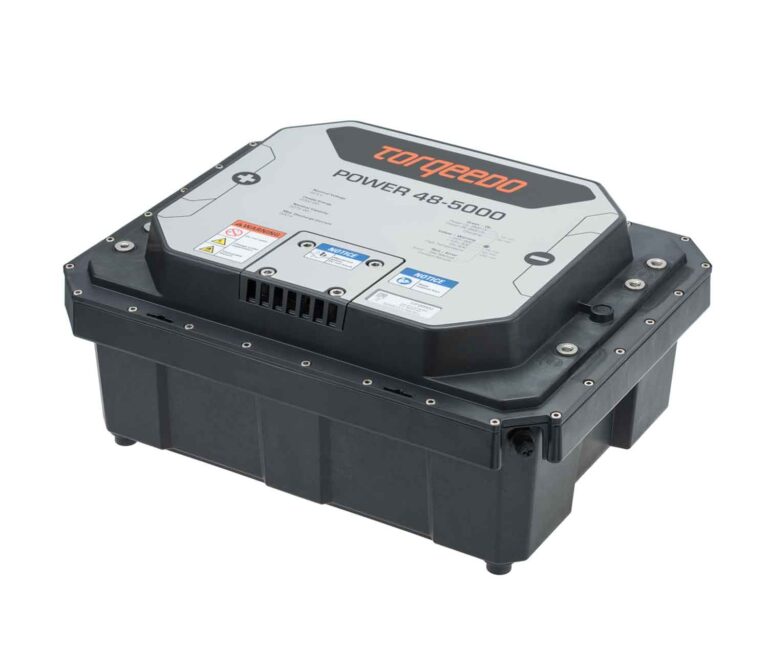

Battery for Torqeedo 48V.
- High efficiency lithium battery of 5000 Wh.
- Weighs 36.5 kg.
- Fully charged in 10h with the standard charger (650 W)
- Fully charged in 2h with fast charger (2900 W)
- Waterproof according to IP67
- Built-in protection against overcharging, short circuit, deep discharge, reverse polarity & overheating
| General characteristics | |
| Battery capacity | 5275 Wh |
| Nominal voltage | 44,4 V |
| Final discharge voltage | 36,0 V |
| Maximum discharge current | 200 A |
| Maximum discharge current at nominal voltage | 8.800 W |
| Weight (kg) | 36,5 kg |
| Dimensions (L x H x W) | 506 mm x 224 mm x 386 mm |
| Volume | 31 l |
| Battery chemistry | LMO-NMC |
| Benchmark information | |
| Energy density (weight) | 145 Wh/kg |
| Energy density (volume) | 160 Wh/l |
| Price-performance | 1,00 EUR/Wh |
| Power density (weight) | 250 W/kg |
| Power density (volume) | 280 W/l |
| Lifetime data | |
| Cycle life | >3000 cycles with 80% depth of discharge at 25°C results in capacity loss of about 20%. |
| Average annual capacity loss | Approx. 4% at 25°C ambient temperature |
| Usage information | |
| Ambient temperature, discharge | -10°C up to +50°C |
| Ambient temperature, charging | 0°C up to +45°C |
| Ambient temperature, storage | -25°C up to +60°C |
| Typical storage time at 50% SOC | |
| Max. connections | 1S1P or 1S2P |
| Max. fast charging | 120 A |
| Protection class | IP67 |
